电线平方 Wire square |
电线枪 Wire rance |

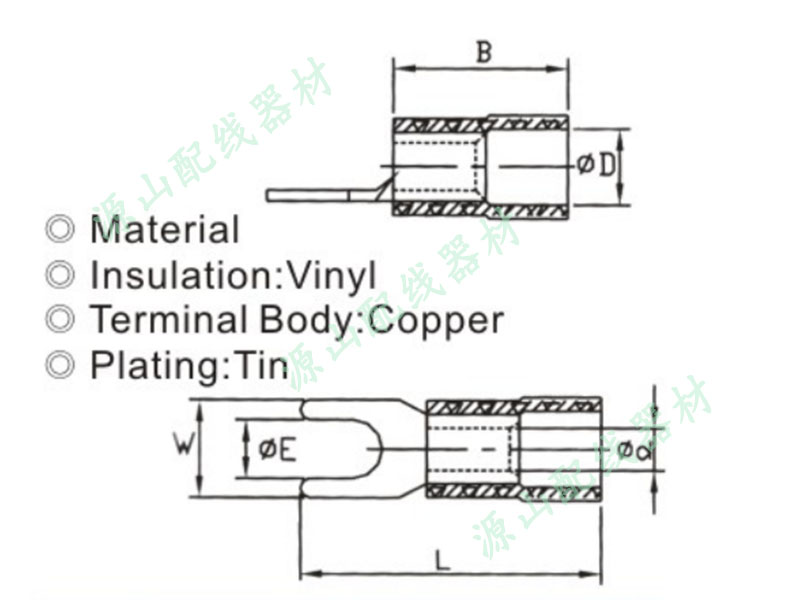

尺寸(Dimensions) |
颜色 Color |
||||||
| AWG/MCM | MM2 | ΦE | ΦD | Φd | W | B | L | ||
| VF1.25-3Y | 22-16 | 0.25-1.65 | 3.2 | 4.0 | 1.7 | 5.7 | 10.4 | 21.8 |
红色 Red |
| VF1.25-4Y | 22-16 | 0.25-1.65 | 4.3 | 4.0 | 1.7 | 6.4 | 10.4 | 21.8 | |
| VF1.25-5Y | 22-16 | 0.25-1.65 | 5.3 | 4.0 | 1.7 | 8.0 | 10.4 | 21.8 | |
| VF1.25-6Y | 22-16 | 0.25-1.65 | 6.7 | 4.0 | 1.7 | 10.7 | 10.4 | 21.8 | |
| VF2-3Y | 16-14 | 1.04-2.63 | 3.2 | 4.6 | 2.3 | 5.7 | 10.4 | 21.8 |
蓝色 Blue |
| VF2-4Y | 16-14 | 1.04-2.63 | 4.3 | 4.6 | 2.3 | 6.4 | 10.4 | 21.8 | |
| VF2-5Y | 16-14 | 1.04-2.63 | 5.3 | 4.6 | 2.3 | 8.0 | 10.4 | 21.8 | |
| VF2-6Y | 16-14 | 1.04-2.63 | 6.7 | 4.6 | 2.3 | 10.7 | 10.4 | 24.8 | |
| VF3.5-4Y | 12-10 | 2.63-4.06 | 4.3 | 5.6 | 3.2 | 8.0 | 13.3 | 24.8 |
黄色 Yellow |
| VF3.5-5Y | 12-10 | 2.63-4.06 | 5.3 | 5.6 | 3.2 | 8.0 | 13.3 | 24.8 | |
| VF5.5-3Y | 12-10 | 4.06-6.64 | 3.7 | 6.6 | 3.5 | 8.2 | 13.6 | 26.5 |
黄色 Yellow |
| VF5.5-4Y | 12-10 | 4.06-6.64 | 4.3 | 6.6 | 3.5 | 8.2 | 13.6 | 26.5 | |
| VF5.5-5Y | 12-10 | 4.06-6.64 | 5.3 | 6.6 | 3.5 | 9.0 | 13.6 | 26.5 | |
| VF5.5-6Y | 12-10 | 4.06-6.64 | 6.4 | 6.6 | 3.5 | 12.0 | 13.6 | 31.2 | |
| VF8-5Y | 8 | 6.64-10.52 | 5.3 | 8.3 | 4.5 | 9.0 | 17.5 | 29.5 |
红色 Red |
| VF8-6Y | 8 | 6.64-10.52 | 6.7 | 8.3 | 4.5 | 12.0 | 17.5 | 32.0 | |
| VF14-5Y | 6 | 10.52-16.78 | 5.3 | 9.7 | 5.9 | 12.0 | 23.0 | 40.5 |
红色 Red |
| VF14-6Y | 6 | 10.52-16.78 | 6.7 | 9.7 | 5.9 | 12.0 | 23.0 | 40.5 | |
