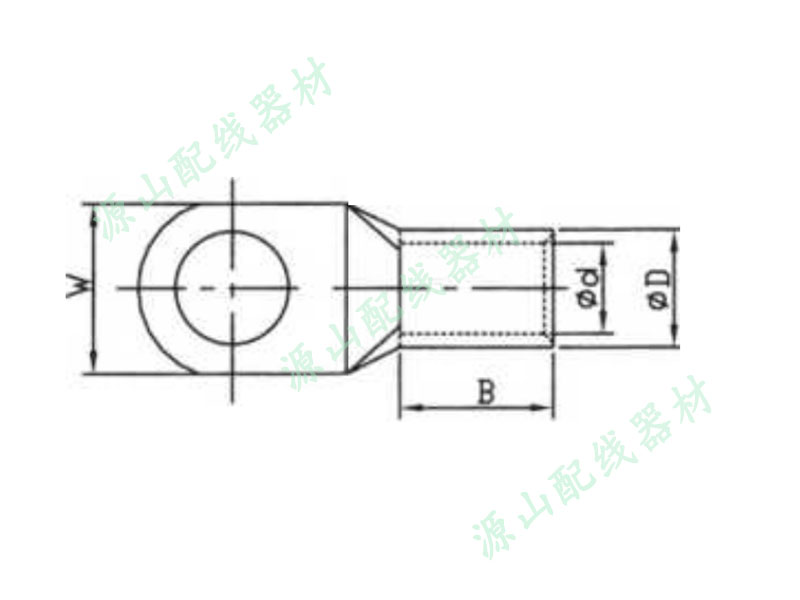

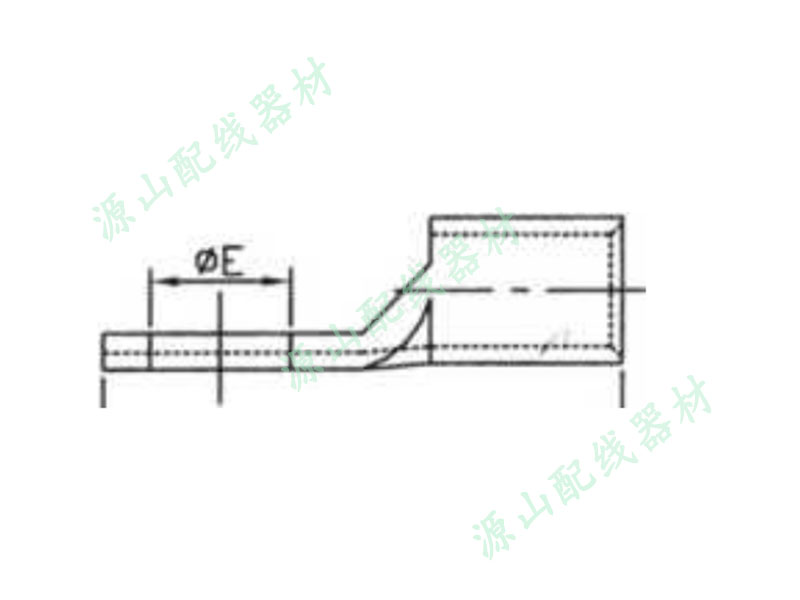

| 型号 | 尺寸(Dimensions) | |||||
| Ltem No. | ΦE | ΦD | Φd | ΦW | ΦB | ΦL |
| SC1.5-4 | 4.2 | 3.6 | 1.8 | 8 | 5 | 16 |
| SC1.5-5 | 5.2 | 3.6 | 1.8 | 10 | 5 | 17 |
| SC1.5-6 | 6.5 | 3.6 | 1.8 | 10 | 5 | 18 |
| SC2.5-4 | 4.2 | 3.9 | 2.4 | 8 | 7 | 18 |
| SC2.5-5 | 5.2 | 3.9 | 2.4 | 10 | 7 | 20 |
| SC2.5-6 | 6.5 | 3.9 | 2.4 | 10 | 7 | 20 |
| SC2.5-8 | 8.4 | 3.9 | 2.4 | 12.5 | 7 | 23 |
| SC4-4 | 4.2 | 4.7 | 3.1 | 10 | 7 | 20 |
| SC4-5 | 5.2 | 4.7 | 3.1 | 10 | 7 | 20 |
| SC4-6 | 6.5 | 4.7 | 3.1 | 10 | 7 | 20 |
| SC4-8 | 8.4 | 4.7 | 3.1 | 12.5 | 7 | 23 |
| SC6-4 | 4.2 | 5.4 | 3.8 | 10 | 9 | 24 |
| SC6-5 | 5.2 | 5.4 | 3.8 | 10 | 9 | 24 |
| SC6-6 | 6.5 | 5.4 | 3.8 | 12 | 9 | 24 |
| SC6-8 | 8.4 | 5.4 | 3.8 | 12.5 | 9 | 26 |
| SC6-10 | 10.5 | 6 | 4 | 15 | 9 | 28 |
| SC10-5 | 5.2 | 6.1 | 4.5 | 12 | 9 | 25 |
| SC10-6 | 6.5 | 6.1 | 4.5 | 12 | 9 | 25 |
| SC10-8 | 8.4 | 6.1 | 4.5 | 12.5 | 9 | 27 |
| SC10-10 | 10.5 | 6.1 | 4.5 | 15 | 9 | 29 |
| SC10-12 | 13 | 6.1 | 4.5 | 17 | 9 | 31 |
| SC16-5 | 5.2 | 7 | 5.4 | 12 | 12 | 30 |
| SC16-6 | 6.5 | 7 | 5.4 | 12 | 12 | 30 |
| SC16-8 | 8.4 | 7 | 5.4 | 12.5 | 12 | 30 |
| SC16-10 | 10.5 | 7 | 5.4 | 16 | 12 | 33 |
| SC16-12 | 13.0 | 7.0 | 5.4 | 17.0 | 12.0 | 35.0 |
| SC25-5 | 5.2 | 8.6 | 6.8 | 13.0 | 12.0 | 33.0 |
| SC25-6 | 6.5 | 8.6 | 6.8 | 13.0 | 12.0 | 33.0 |
| SC26-8 | 8.4 | 8.6 | 6.8 | 15 | 12.0 | 33.0 |
| SC2S-10 | 10.5 | 8.6 | 6.8 | 18 | 12.0 | 34.0 |
| SC25-12 | 13.0 | 8.6 | 6.8 | 16.0 | 12.0 | 35.0 |
| SC25-14 | 15.0 | 8.6 | 6.8 | 20.0 | 12.0 | 38.0 |
| SC35-5 | 5.2 | 10.4 | 8.2 | 16.0 | 14.0 | 38.0 |
| SC35-6 | 6.5 | 10.4 | 8.2 | 16.0 | 14.0 | 38.0 |
| SC35-8 | 8.4 | 10.4 | 8.2 | 16.0 | 14.0 | 38.0 |
| SC35-10 | 10.5 | 10.4 | 8.2 | 18 | 14.0 | 39.0 |
| SC35-12 | 13.0 | 10.4 | 8.2 | 19.0 | 14.0 | 40.5 |
| SC35-14 | 15 | 10.4 | 8.2 | 20 | 14.0 | 42.0 |
| SC50-6 | 17 | 12.2 | 9.5 | 17.8 | 16.0 | 45.0 |
| SC50-8 | 8.4 | 12.2 | 9.5 | 17.8 | 16.0 | 45.0 |
| SC50-10 | 10.5 | 12.2 | 9.5 | 17.8 | 16.0 | 45.0 |
| SC50-12 | 13.0 | 12.2 | 9.5 | 20.0 | 16.0 | 45.0 |
| SC50-14 | 15.0 | 12.2 | 9.5 | 22.0 | 16.0 | 46 |
| SC50-16 | 17.0 | 12.2 | 9.5 | 24.0 | 16.0 | 47.0 |
| SC70-8 | 8.4 | 14.4 | 11.2 | 21.0 | 20.0 | 52.0 |
| 8C70-10 | 10.5 | 14.4 | 11.2 | 21.0 | 20.0 | 52.0 |
| SC70-12 | 13.0 | 14.4 | 11.2 | 21.0 | 20.0 | 52.0 |
| SC70-14 | 15.0 | 14.4 | 11.2 | 21.0 | 20.0 | 52.0 |
| SC70-16 | 17.0 | 14.4 | 11.2 | 25.0 | 20.0 | 53.0 |
| SC95-8 | 8.4 | 17.1 | 13.5 | 25.0 | 23.0 | 58.0 |
| SC95-10 | 10.5 | 17.1 | 13.5 | 25.0 | 23.0 | 58.0 |
| SC95-12 | 13.0 | 17.1 | 13.5 | 25.0 | 23.0 | 58.0 |
| SC95-14 | 15.0 | 17.1 | 13.6 | 25.0 | 23.0 | 58.0 |
| SC95-16 | 17.0 | 17.1 | 13.5 | 25.0 | 23.0 | 58.0 |
| SC120-8 | 8.4 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC120-10 | 10.5 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC120-12 | 13.0 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC120-14 | 15.0 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC120-16 | 17.0 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC120-20 | 21.0 | 19.0 | 15.0 | 27.5 | 22.0 | 63.0 |
| SC150-8 | 8.4 | 20.8 | 16.6 | 30.0 | 26 | 70.0 |
| SC150-10 | 10.5 | 208 | 16.5 | 30.0 | 26 | 70.0 |
| SC150-12 | 13.0 | 20.8 | 10.5 | 30.0 | 26 | 70.0 |
| SC150-14 | 15.0 | 20.8 | 16.6 | 30.0 | 26 | 70.0 |
| SC150-16 | 17.0 | 20.8 | 16.5 | 30.0 | 26 | 70.0 |
| SC150-20 | 21.0 | 20.8 | 16.5 | 30.0 | 26 | 70.0 |
| SC185-10 | 10.5 | 23.1 | 18.5 | 33.5 | 32.0 | 75.0 |
| SC185-12 | 13.0 | 23.1 | 18.5 | 33.5 | 32.0 | 75.0 |
| SC185-14 | 15.0 | 23.1 | 18.5 | 33.5 | 32.0 | 75.0 |
| SC185-16 | 17.0 | 23.1 | 18.5 | 33.5 | 32.0 | 75.0 |
| SC185-20 | 21.0 | 23.1 | 18.5 | 33.5 | 32.0 | 75.0 |
| SC240-10 | 10.5 | 26.0 | 21.0 | 38 | 38.0 | 90.0 |
| SC240-12 | 13.0 | 26.0 | 21.0 | 38 | 38.0 | 90.0 |
| SC240-14 | 15.0 | 26.0 | 21.0 | 38 | 38.0 | 90.0 |
| SC240-16 | 17.0 | 26.0 | 21.0 | 38 | 38.0 | 90.0 |
| SC240-20 | 21.0 | 26.0 | 21.0 | 38 | 38.0 | 90.0 |
| SC300-10 | 10.5 | 29.4 | 23.5 | 43.0 | 42 | 98.0 |
| SC300-12 | 19.0 | 294 | 23.5 | 43.0 | 42 | 98.0 |
| SC300-14 | 15.0 | 29.4 | 23.5 | 43.0 | 42 | 98.0 |
| SC300-16 | 17.0 | 29.4 | 23.5 | 43.0 | 42 | 98.0 |
| SC300-20 | 21.0 | 29.4 | 23.5 | 43.0 | 42 | 98.0 |
| SC400-10 | 10.5 | 35.6 | 28.5 | 52.0 | 44.0 | 110.0 |
| SC400-12 | 13.0 | 35.8 | 28.5 | 52.0 | 44.0 | 110.0 |
| SC400-14 | 15.0 | 35.8 | 28.5 | 52.0 | 44.0 | 110.0 |
| SC400-16 | 17.0 | 35.8 | 28.5 | 52.0 | 44.0 | 110.0 |
| SC400-20 | 21.0 | 35.8 | 28.5 | 52.0 | 44.0 | 110.0 |
| SC500-10 | 10.5 | 38.2 | 30.0 | 55.0 | 48 | 120.0 |
| SC500-12 | 13.0 | 38.2 | 30.0 | 55.0 | 48 | 120.0 |
| SC500-14 | 15.0 | 38.2 | 30.0 | 55.0 | 48 | 120.0 |
| SC500-16 | 17.0 | 38.2 | 30.0 | 55.0 | 48 | 120.0 |
| SC500-20 | 21.0 | 38.2 | 30.0 | 55.0 | 48 | 120.0 |
| SC630-10 | 10.5 | 44.1 | 35.0 | 63.5 | 56.0 | 140 |
| SC630-12 | 13.0 | 44.1 | 35 | 63.5 | 56.0 | 140 |
| SC630-14 | 15.0 | 44 1 | 35.0 | 63.5 | 56.0 | 140 |
| SC630-16 | 17.0 | 44.1 | 35.0 | 63.5 | 56.0 | 140 |
| SC630-20 | 21.0 | 44.1 | 35.0 | 63.5 | 56.0 | 140 |
